Overview

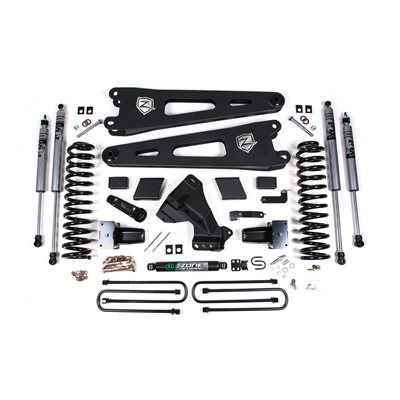

Zone Offroad now offers a suspension lifts for the 2020 Ford F350 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models. These new 6" lift kits are available for gas and diesel applications, offered with replacement HD radius arm to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
Corrects suspension geometry with high strength radius arms. Forged pitman arm to correct steering angles. Heavy duty fabricated track bar relocation bracket to re-center front axle,Full length Diesel/ Gas specific coil springs for a smooth rideNotes
Dually Models Only.Diesel Models Only.Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models
Wheel and Tire:
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory / original equipment tire size.
Specification
Front Lift Method : Coil Spring & Radius ArmFront Lift Height : 6Rear Lift Method : BlockRear Lift Height : 5"Shocks Included : YesInstallation
4-6 hrsInstruction
View Instruction Sheet
Zone Offroad
